Gaussian splatting on a website: how to put a 3D scan on your site

A Gaussian splat is a 3D scan made of hundreds of thousands of soft, coloured, see-through blobs, built from ordinary photos or a phone video. To put one on a website, capture it with a phone app, export a .spz or .ply file, and load it with a free web viewer such as Spark on three.js, in about 20 lines of code.

The method comes from a paper by Kerbl, Kopanas, Leimkühler and Drettakis, published in ACM Transactions on Graphics in July 2023 and shown at SIGGRAPH 2023. Before it, the authors wrote, no method could show a complete, unbounded scene at 1080p in real time. Theirs ran at 30 frames a second or more (abstract on arXiv).

I built one you can try: tawfik.tv/window. It renders a splat live in your browser with Spark, and the screen behaves like a pane of glass: the room shifts as you move the cursor on a laptop, or drag or tilt a phone. If you allow the camera, it follows your head instead, worked out on your own device. To be clear about the scene: it is Spark’s own sample, a fireplace, not a scan of mine. It holds 301,000 splats in a 4.4 MB .spz file.

What is a Gaussian splat, in plain words?

Picture a 3D photo made of blobs instead of triangles. Each blob has a position, a size, a stretch and a direction, a colour, and how see-through it is. Blend enough of them from back to front and they add up to a photo-real picture you can walk round.

Three things make splats different from the 3D models in games:

• They are made from photos, not modelled. Software learns the blobs by checking them against your photos thousands of times. The original research code runs 30,000 training steps.
• They look like the photos. Plants, hair and fabric, which are slow to model by hand, come out looking the way they did on the day.
• The light is baked in. You get the light that was there when you scanned. You cannot relight a splat the way you relight a model.

How do you capture a Gaussian splat with a phone?

1. Pick an app. Scaniverse from Niantic Spatial has a free tier, runs on iPhone and Android, and exports splats as SPZ or PLY. Polycam builds a splat from 20 to 200 photos or an MP4 video.
2. Light it evenly. Overcast daylight or soft room light. Hard shadows get baked into the scan.
3. Walk a full circle, slowly. Keep the subject in the middle of the frame and overlap each shot with the last. Then walk a second circle, higher or lower.
4. Cover every side people will see. The software can only rebuild what the photos saw. Try “front half only” in the demo below and look round the back.
5. Avoid what moves and what shines. People walking through, leaves in the wind, mirrors and glass all turn to blur.
6. Clean it before you publish. Most scans have stray blobs floating at the edges. SuperSplat, a free, open-source editor that runs in the browser, crops them away.

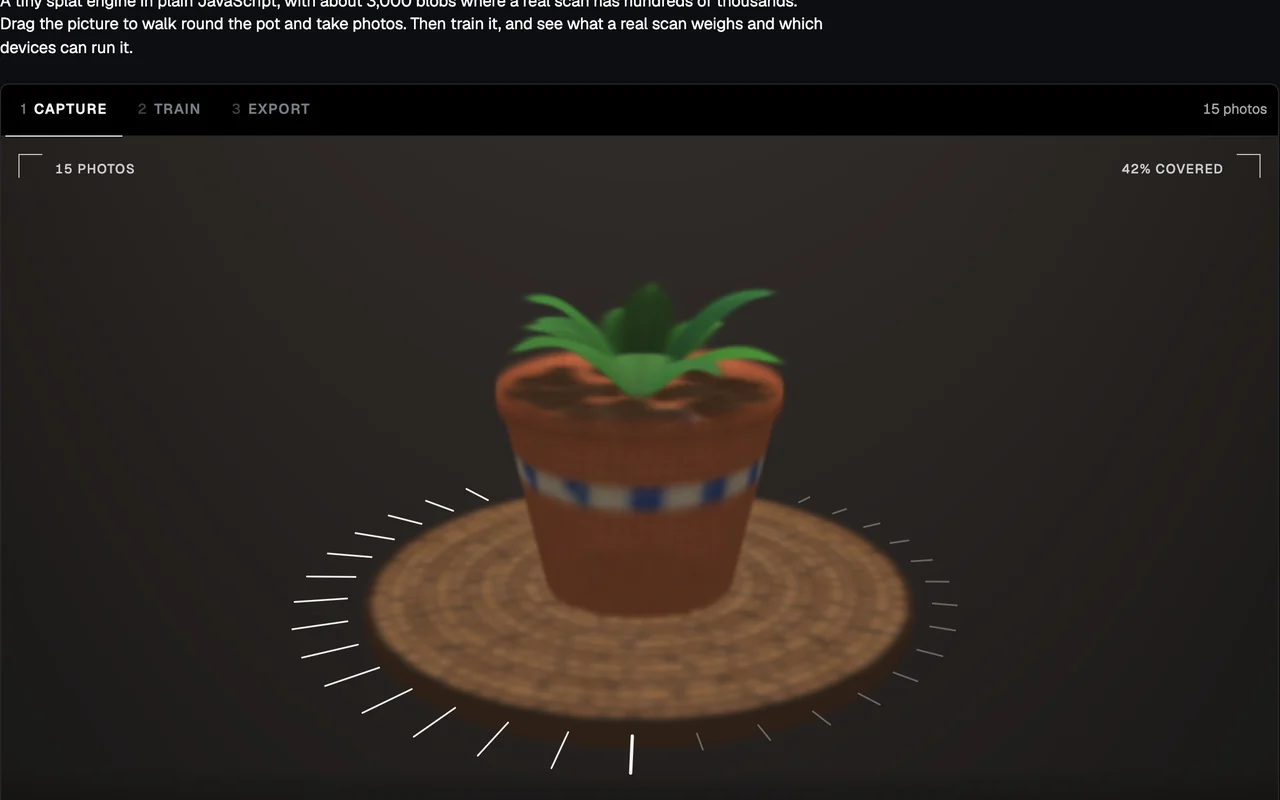

Here is the whole pipeline in one place. Walk round the pot to take photos, train it, then see what a real scan weighs.

Which file format: .ply, .splat or .spz?

• .ply is what training produces. In the original research code every splat stores 62 numbers: position, a normal, 48 colour numbers that let the colour change with viewing angle, see-through, size and rotation. At 4 bytes each, that is 248 bytes a splat, so a million splats is about 248 MB.
• .splat is the simple format from the first WebGL viewer: 32 bytes a splat. It keeps one colour per blob, so shine does not move as you do.
• .spz is Niantic’s open-source compressed format, MIT licensed. Its makers say SPZ files are typically about 10 times smaller than the PLY, with minimal visual difference.

PlayCanvas published a real example in December 2023: their guitar scan was 132.8 MB as a PLY and 8.7 MB compressed. Spark reads PLY, compressed PLY, SPZ, SPLAT, KSPLAT and PlayCanvas’s newer SOG format.

My rule: ship .spz to the browser and keep the .ply as the master.

How do I put a Gaussian splat on my website?

Pick a viewer first.

• Spark. A Gaussian splat renderer for three.js, built by World Labs, MIT licence. It is what my demo uses. Choose it when your site already uses three.js, or when you want splats mixed with ordinary 3D objects.
• SuperSplat. PlayCanvas’s free, open-source editor for inspecting, editing, optimising and publishing splats, in the browser. The quickest route if you want no code.
• GaussianSplats3D. An earlier three.js viewer you will find in older tutorials. Its author says it is no longer in active development and points people to Spark.

With Spark, this is a complete page. It is Spark’s own getting-started code, trimmed, with your scan in place of their sample:

<style> body { margin: 0; } </style>
<script type="importmap">
{ "imports": {
    "three": "https://cdn.jsdelivr.net/npm/three@0.180.0/build/three.module.js",
    "@sparkjsdev/spark": "https://sparkjs.dev/releases/spark/2.3.1/spark.module.js" } }
</script>
<script type="module">
import * as THREE from "three";
import { SparkRenderer, SplatMesh } from "@sparkjsdev/spark";

const renderer = new THREE.WebGLRenderer({ antialias: false });
renderer.setSize(innerWidth, innerHeight);
document.body.appendChild(renderer.domElement);

const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(60, innerWidth / innerHeight, 0.01, 1000);
scene.add(new SparkRenderer({ renderer }));

const scan = new SplatMesh({ url: "/scans/room.spz" });
scan.quaternion.set(1, 0, 0, 0);   // turns the scan the right way up, as in Spark's example
scan.position.set(0, 0, -3);
scene.add(scan);

// the window effect, simplest version: the camera follows the cursor
addEventListener("pointermove", (e) => {
  camera.position.x = (e.clientX / innerWidth - 0.5) * 0.4;
  camera.position.y = (0.5 - e.clientY / innerHeight) * 0.2;
});

renderer.setAnimationLoop(() => renderer.render(scene, camera));
</script>

Source: Spark getting started. My live version goes one step further: the glass stays fixed and the eye moves in front of it, so the picture bends the way a real window does. Three things I hit shipping it:

• Your Content Security Policy. Spark starts its workers from data: URLs, so worker-src must allow data:. My page may only load its own files, which is also the privacy proof for head tracking: face detection runs in the browser, and anyone can open the Network tab and see that no frames leave.
• Paths. tawfik.tv serves /window without a trailing slash, so relative paths broke. Load the scan by an absolute path or relative to import.meta.url.
• The edges of the scan. A scan stops where the photos stopped. Limit how far the camera can travel, or people see black at the edges.

Will a Gaussian splat run on a phone?

Yes, if you keep the count down. Spark’s performance guide gives rule-of-thumb budgets:

• iPhone: 1 to 3 million splats.
• Android phone: 1 to 2 million.
• Quest 3: 1 million or less.
• Computer: 1 to 5 million, and 10 to 20 million or more on some desktops.

Over budget, turn on level of detail. With Spark 2.0, new SplatMesh({ url, lod: true }) renders a smaller set of splats sized to the device: by default 1 million on Android, 1.5 million on iOS and 2.5 million on desktop (level-of-detail guide). For big scans, build the level-of-detail file ahead of time and stream it.

Two more settings matter. Keep antialiasing off, as Spark advises, because splats gain nothing from it. And watch the pixel ratio: my demo times its own frames, and when 60 frames average slower than 25 ms it lowers the resolution a step, then raises it again when there is room. It also shows a loading percentage, so nobody waits on a blank screen while the 4.4 MB scan arrives.

What is a Gaussian splat website good for?

• Property. A walk-round of a real room on the listing, from a phone scan, with no 3D artist.
• Retail. A real product, a shop floor or a window display. In my virtual stores the products were rebuilt in real-time 3D from CAD files or photogrammetry, so they could be lit and configured. A splat is the faster route when you want the real thing as it looks and do not need to relight it.
• Venues. A stage, a club or a view from a seat, scanned once and opened from a link, as a light first step towards a digital twin.
• Events. Scan the set or the stand after the build and the event lives on as a page. On a fan platform, a scanned room is the skin; the points, games and rewards do the work.

Where splats fall short: anything you need to relight, offer in different colours as a product option, or drop into a game as a solid object. That still needs a modelled 3D asset.

Questions people ask

What is 3D Gaussian splatting?

A way to turn photos of a real place or object into a 3D scene made of soft, coloured blobs that render in real time. It comes from a 2023 research paper by Kerbl and colleagues.

Can I view or edit a Gaussian splat online without code, in SuperSplat?

Yes. Open the file in SuperSplat in your browser, or use the viewer in your scan app. To show it on your own site, in your own design, use a web viewer such as Spark.

How big is a Gaussian splat file?

About 248 bytes a splat as a raw PLY, so a million splats is about 248 MB. As SPZ it is roughly a tenth of that. My demo scene is 301,000 splats in 4.4 MB.

Do Gaussian splats work on iPhone and Android?

Yes, in a browser with WebGL2. Spark says it works on almost all devices, through WebGL2, and suggests 1 to 3 million splats on an iPhone and 1 to 2 million on an Android phone.

Is a splat better than photogrammetry?

They do different jobs. Photogrammetry gives you a mesh you can relight and use in a game engine. A splat looks more like the photos, but its lighting is fixed.
